Chassis Display Mounts

Modular Display Mount Solutions

Introduction

Modular mounting solution for single/dual displays from 55” to 105” that also provides integral enclosed space for equipment and cabling.

Removes the requirement for expensive building work and equipment traditionally housed in a rack or credenza.

View the Display Mount Chassis Overview brochure

Features of an Ashton Bentley Chassis

Quick to install. Assembled in minutes. Simple to relocate.

Minimal building work. Just tether the chassis to the wall. The weight of the display is on the floor, not the wall.
Freestanding bases can be used in front of a glass wall or open space.
Mobile bases allow for easy relocation of the chassis on site.
Displays mounted at the correct height and level, every time.
No special cabling requirements. Cables can be run from the floor or wall.

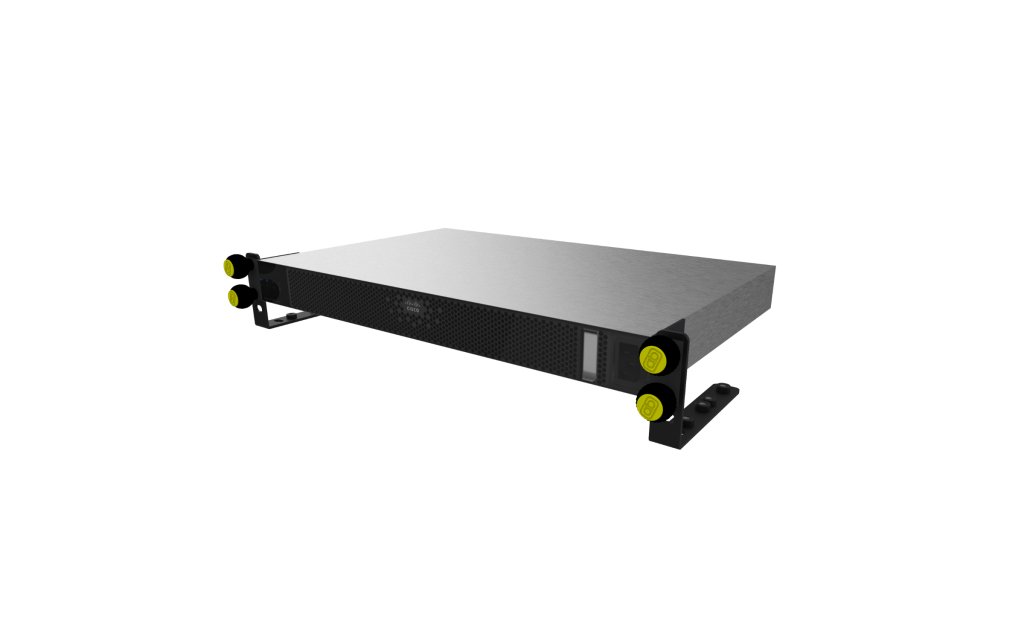

Equipment storage within the chassis removing the requirement for an equipment rack in a cupboard or credenza.

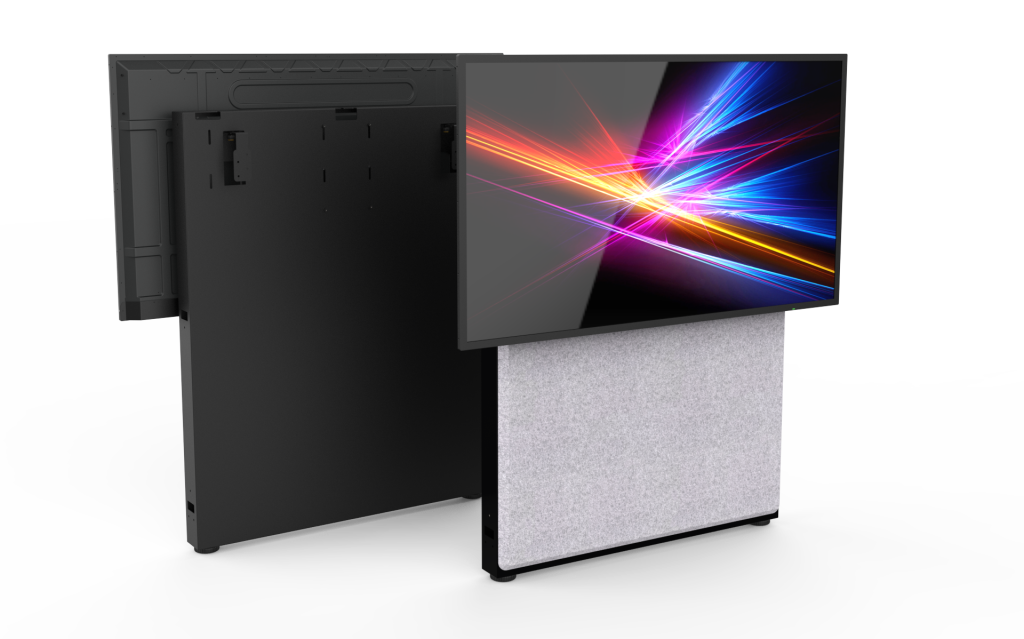

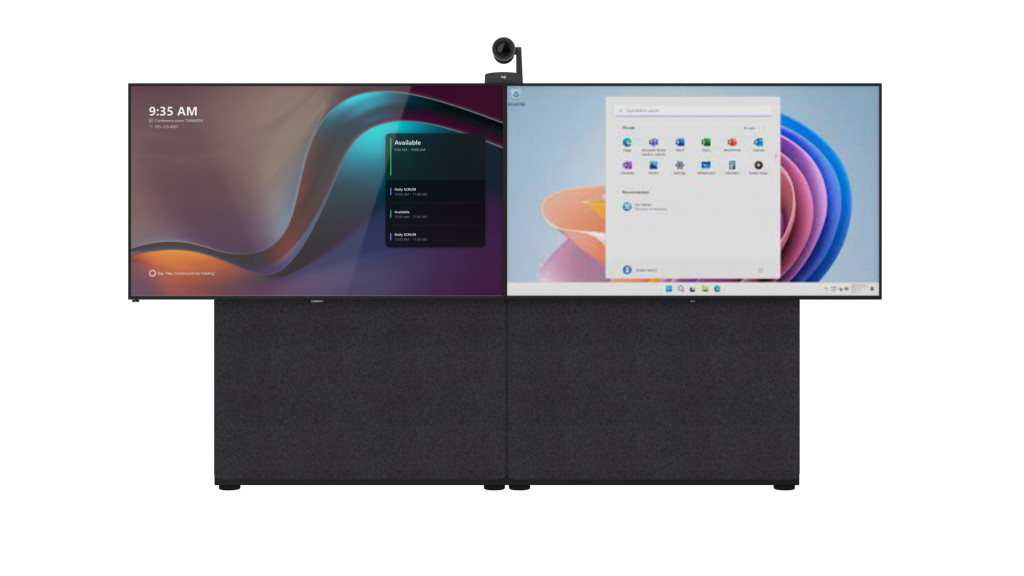

Effortlessly accommodate single or dual displays
Display agnostic. Mount almost any size of display from all manufacturers.

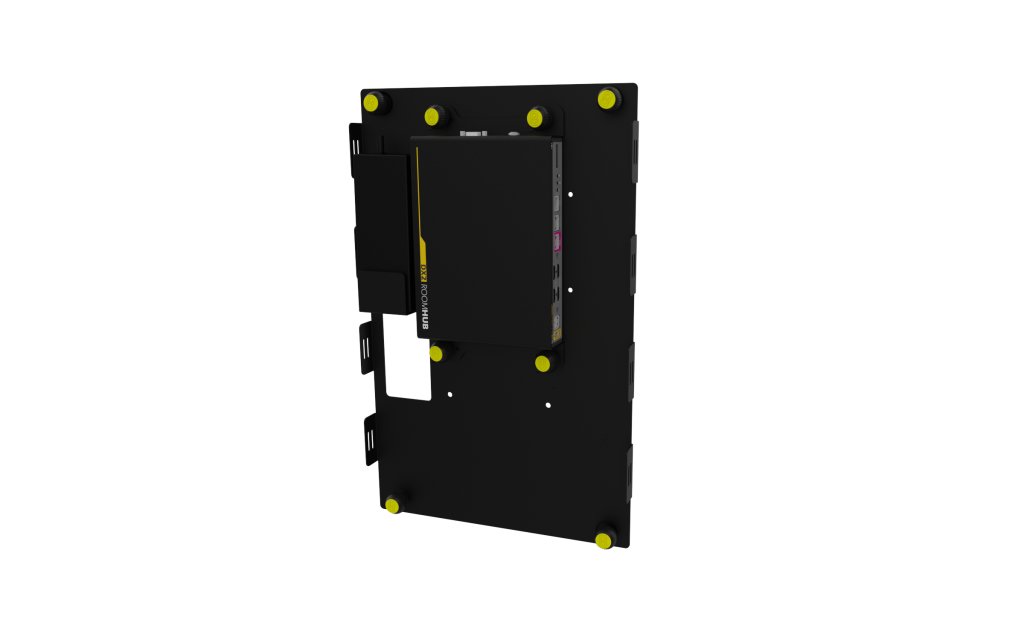

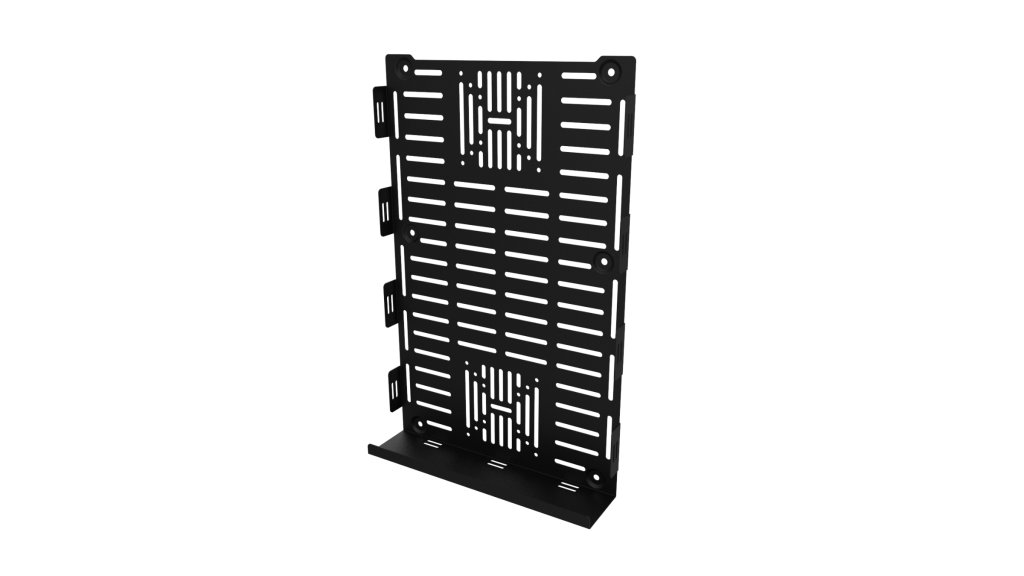

Fixings available for almost any Videobar, Camera and Codec/NUC

Base Options

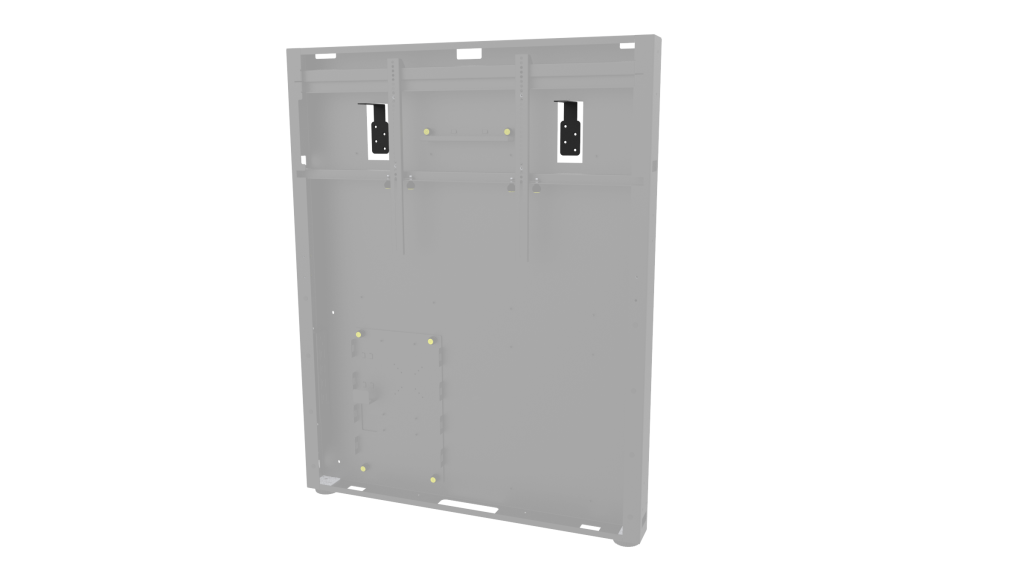

Wall Fixing

Supplied as standard. These brackets anchor the Chassis to the wall. The weight of the chassis and display remains down on the floor, not the wall.

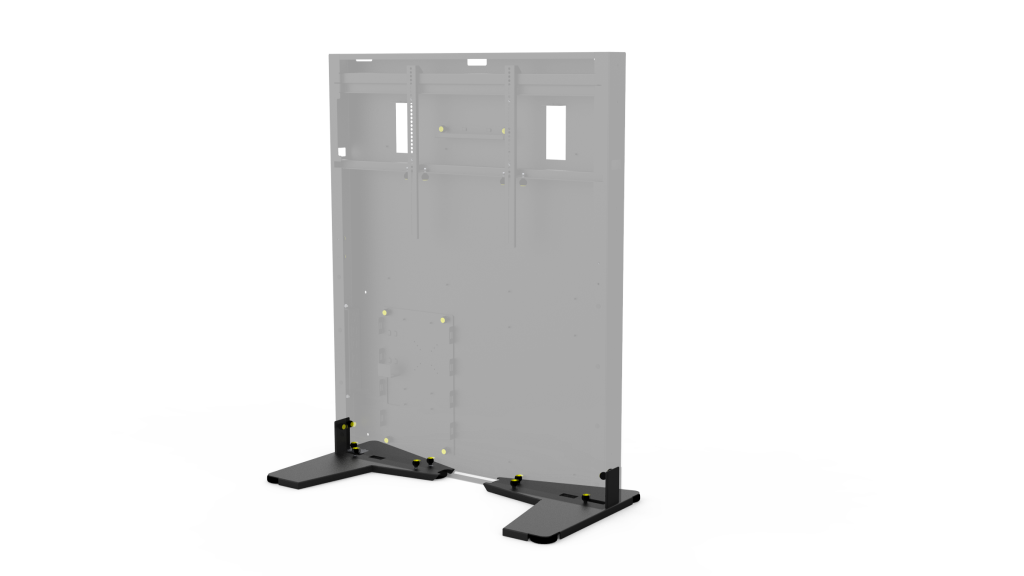

Freestanding

Recommended for installation • In front of a glass wall or in free space. • In a non-permanent location. • In a listed building where no building work is permitted. Simply secure the optional Freestanding Base to the standard Floor-to-Wall chassis with the supplied knobs.

Mobile

For manoeuvrability on site. Simply secure the optional Mobile Base to the standard Floor-to-Wall Chassis with the supplied Knobs.

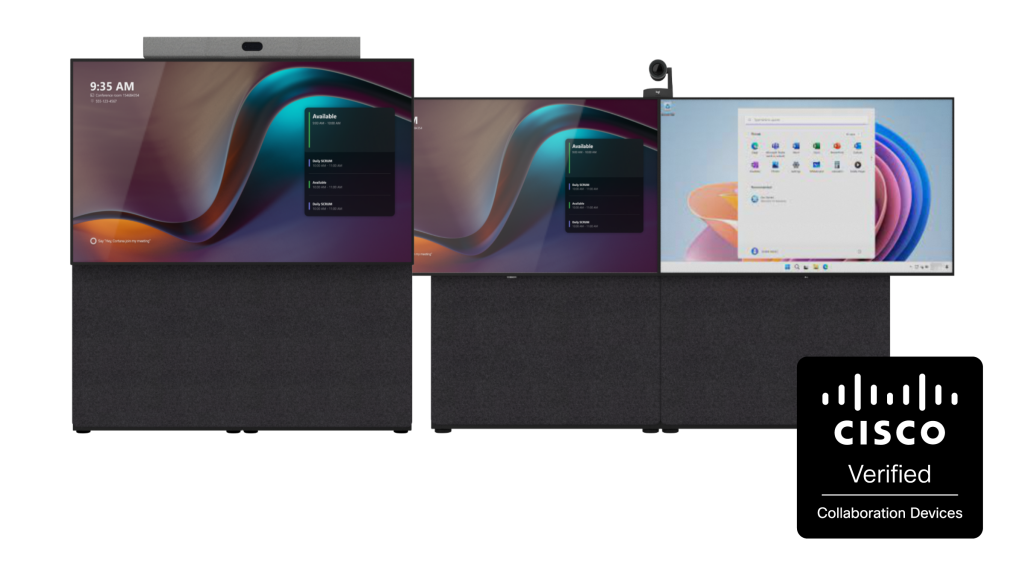

Camera Positions

Correct camera placement is critical to deliver a natural and engaging collaborative experience.

Designed to remove the time-consuming decision making process to get the camera in the right location.

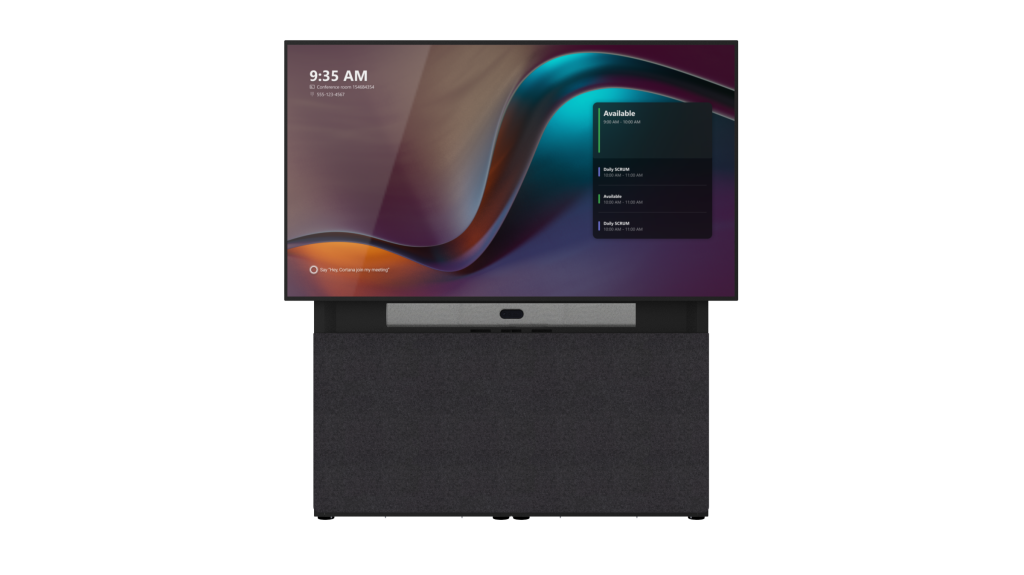

Options for camera above and below for all display sizes and applications.

A range of mounting brackets for all leading camera and Videobars makes the fixing of these simple and secure.

Display compatibility

Mount almost any display between 43” and 105” from all the main manufactures. Including:

Also mount all-in-one panels from Neat & DTEN. Got any special requirements to mount ‘unusual’ displays or other panels, then contact us. We will do our best to find a solution for you.

The only way to mount a display

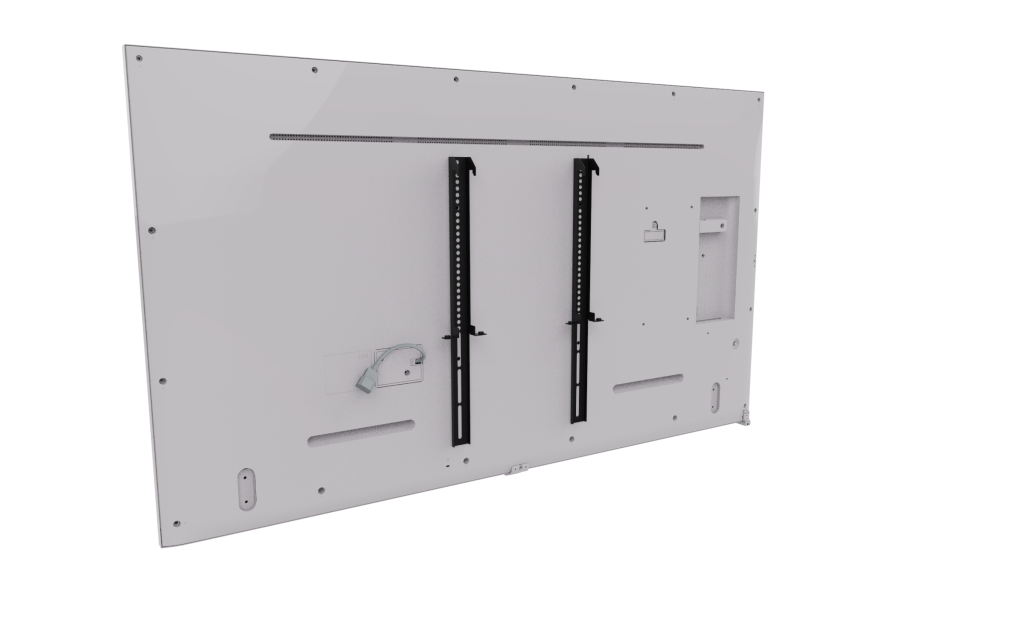

Mounting bar/rail system makes installation incredibly simple. Repeatable display mounting with little effort. Displays always at the correct height, level and square. 55”, 65” & 75”

Acoustic Front Covers

A range of colours are available. The front cover below the display, that covers the equipment enclosure, is made from acoustic material. Magnetic fittings allow for toolless access.
