VX
USB-C & HDMI Video/Audio Extender
Introduction
The Ashton Bentley VX USB-C & HDMI Video/Audio Extender Kit is a two-box system that extends USB-C or
HDMI over a single Cat6a/Cat7 cable up to 35m (100ft).
Simplifying connectivity between USB-C & HDMI sources, video bars, displays and other devices.
Included in the kit:
VXT –Video Transmitter
VXR –Video Receiver
System PSU
10m CAT6a/Cat7 cable

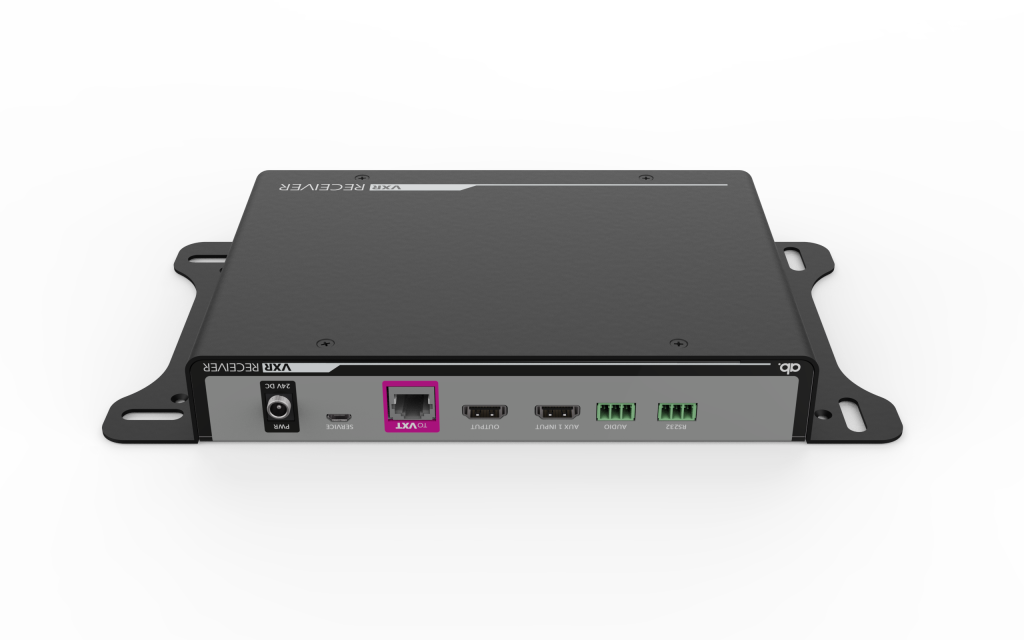

VXR Receiver.
The VXR Receiver provides a single HDMI output with embedded audio from either the USB-Cor HDMI connections at the VXT.
There is an additional AUX HDMI Input allowing the connection of a video conferencing system
or a presentation device.
Note: this AUX Input cannot be selected if there is a source connected to the VXT. Removing all
sources from the VXT will result in the VXR automatically switching to the AUX input.
The RS-232 port provides bi-directional pass-through connectivity to the VXT for any 3rd party
devices.
The VXR has a separate stereo analogue audio output switched with the video signal to allow
the connection of an amplifi er and speakers.

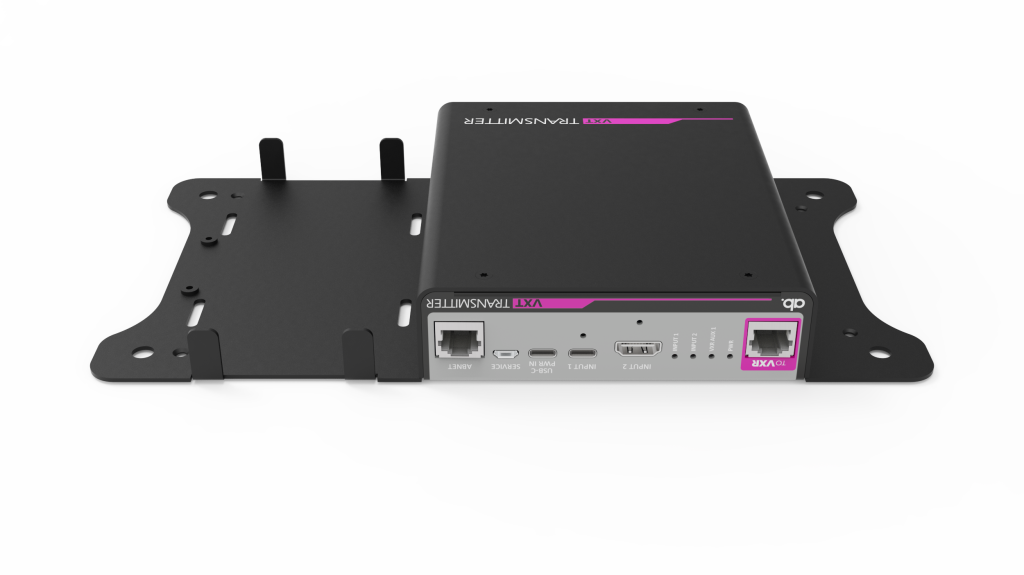

VXT Transmitter.
The main functionality of the VXT is a 2:1 switcher with HDMI and USB-C inputs.
Supports video resolution up to 4K2K@50/60Hz 4:4:4 and bi-directional RS232 pass-through,
with the signals capable of being transmitted up to 35m (100ft).
The VXT is remotely powered from the VXR via the Cat6a/Cat7 interconnect.
An optional PSU can be connected to the VXT that provides charging power for laptops via the
USB-C connection. Mounting position on the back plate for this USB-C charging PSU.
The ABNET port allows the connection of an optional Ashton Bentley Tablebox with Touch
Panel to manually control the switching operation The Tablebox has 1 x HDMI and 1 x USB C

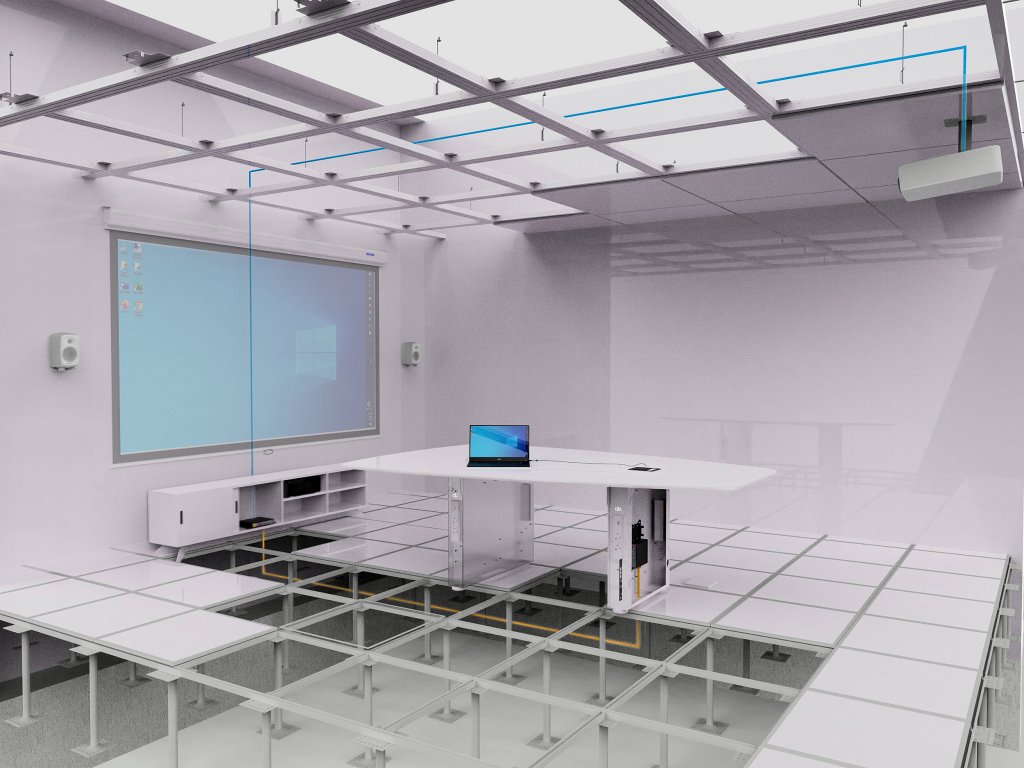

System Basics.
The VXT Transmitter is installed under a table, in a lectern or wherever connection to laptops is required.
The VXR Receiver is placed near the Video Bar/VC equipment or display/projector.
The two boxes are linked with a single Cat6a/Cat7 cable, which can be up to 35m.
A 10m interconnect cable is included as standard.
Simple to install, with minimal cabling.
Optional Accessories.
USB-C Charging PSU (100W).
Device with charging power up to 100W.
Charging power will be supplied over a USB-C Cable or Retractor USB-C Charging PSU (100W).

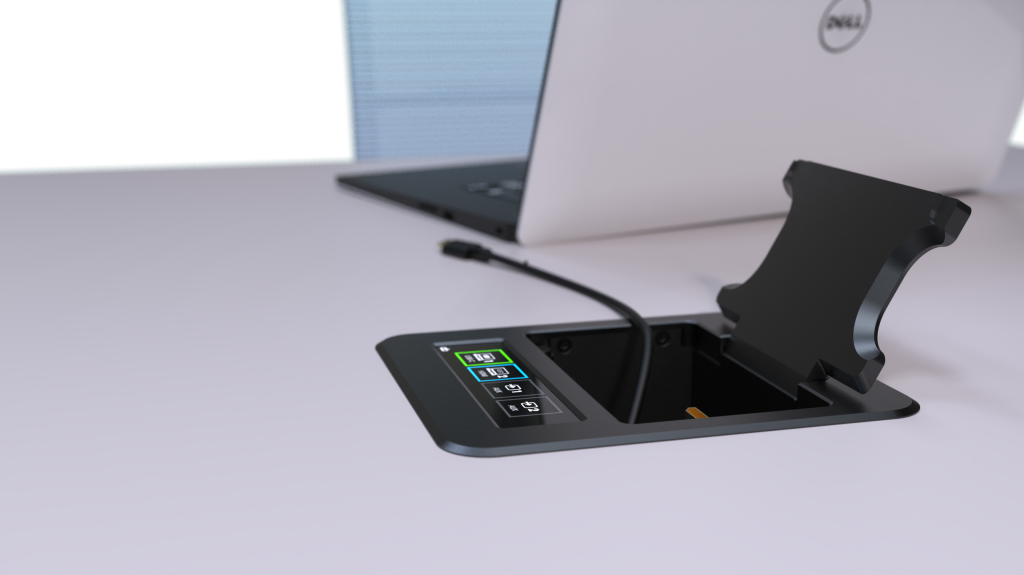

Tablebox & Retractors.
Ashton Bentley Tablebox that can be supplied with 2 Retractors (HDMI & USB-C) or just house input cables.
