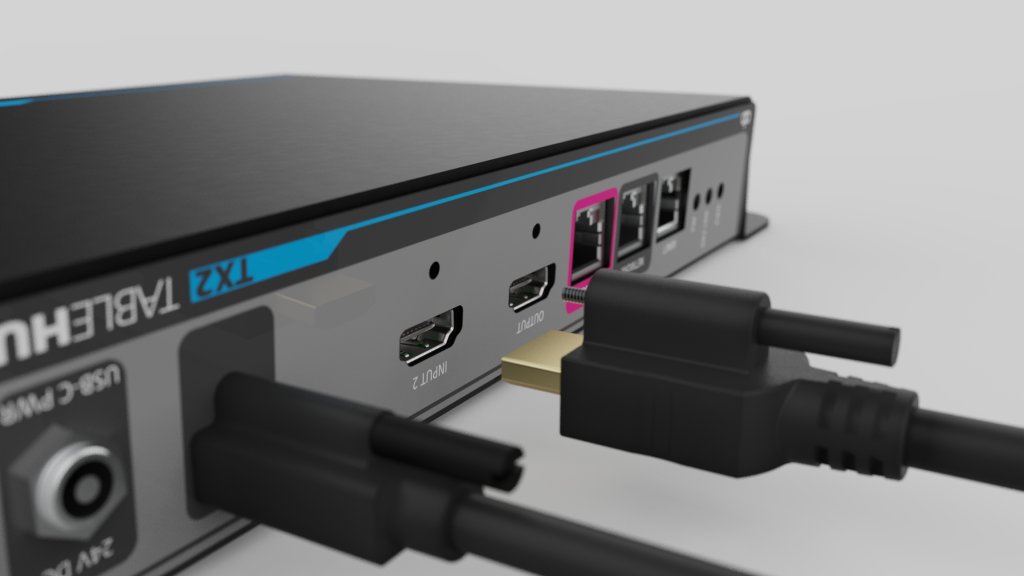

Designed to connect USB-C and HDMI inputs over distance to the DX2 Room Hub
Fully featured USB-C and HDMI connectivity with input signal sensing
Uncompressed 4K60 4:4:4 resolution video routing / transmission
Independent EDID control of each input
HDCP support or blocking
Independently scalable HDMI output port for local monitor or content ingest
Network port through to USB-C device
USB 2.0 with up to 350 Mbit/s data rate
ABNET control connection for AB Tablebox touch panel
Cat6a/Cat7 link to DX2 (powered from DX2 via this link)
Input for optional USB-C laptop charging
DX2 Room Hub.
Provides system/display control and signal routing.
Works with most video conferencing products and traditional codecs. Video loudspeaker bars
are supported either in Bring Your Own Device (BYOD) mode, embedded Teams/Zoom engine, or both.
On-board platform, ABSee, monitors all functionality and connectivity with data available for
3rd party management platforms to simplify maintenance and support. ABSee data available
with separate licence. Contact Ashton Bentley for details.
Uncompressed 4K60 4:4:4 resolution on inputs and outputs
Cat6a/Cat7 link to TX2 (Video, audio, USB and Control) up to 35m
System Confi guration via internal web server for set-up and control
2 Auxiliary HDMI input ports with input signal sensing
2 independently scalable HDMI output ports
Independent EDID control of each input
HDCP selectable for each input
3 USB device ports, 2 with confi gurable power control
ABNET for connection of AB peripheral devices
Programmable CEC screen control
2 Programmable RS232 display control ports
Programmable Cisco codec control port
Programmable RS232 3rd party control system port
OLED status display
External Universal PSU (specify country for correct mains cable)
DX2/TX2 Inter-connectivity Kit
Ashton Bentley CTO, Roger McArdell gives a comprehensive overview of the TX2 Table Hub and DX2 Room Hub Inter-connectivity Kit - Covering all of the systems connectivity, features and configuration software tool.

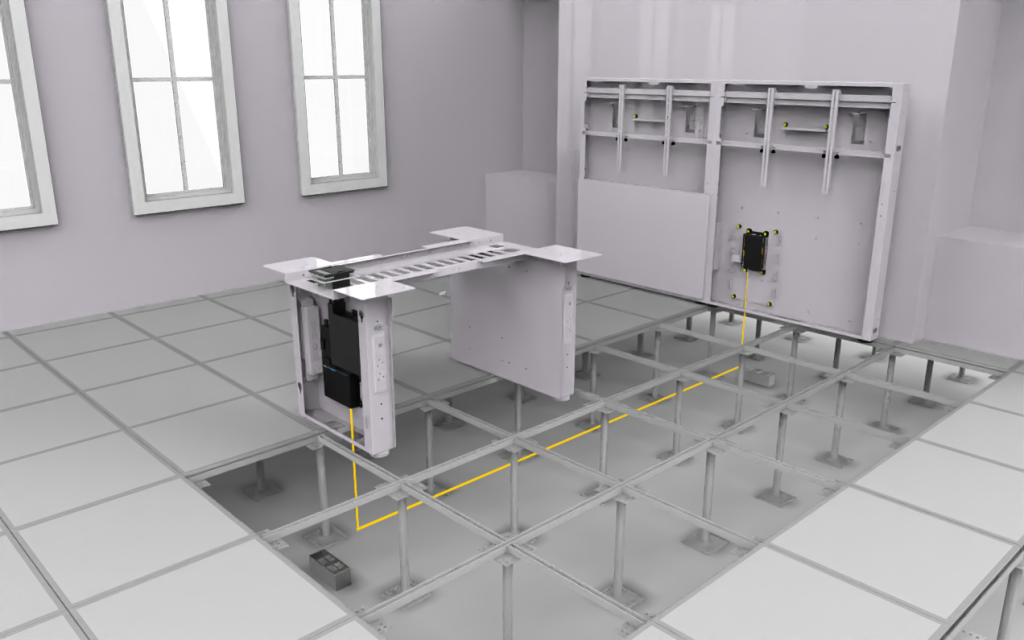

System Basics.

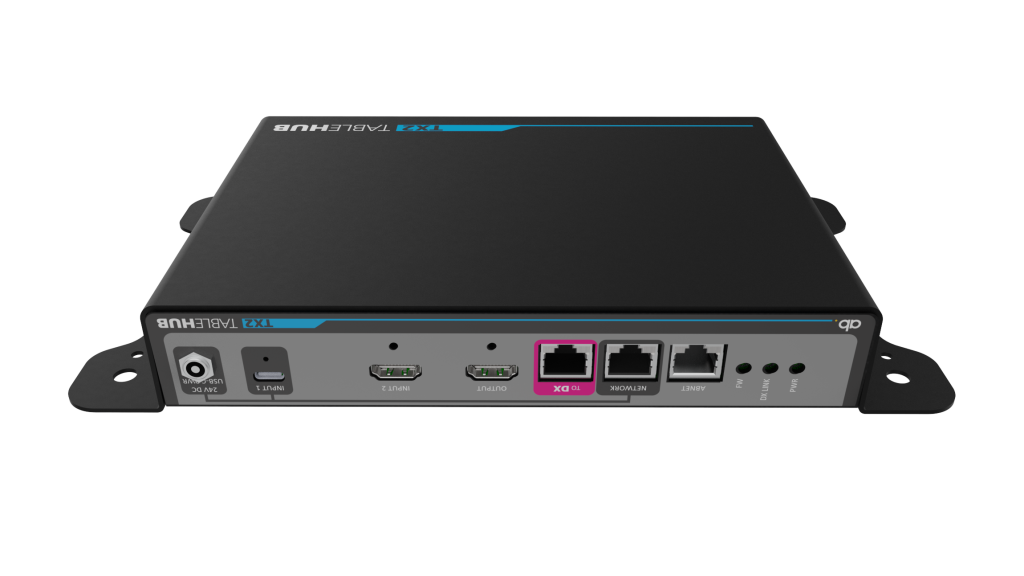

The TX2 Table Hub should be installed under a table, in a lectern or wherever connection to laptops is required.

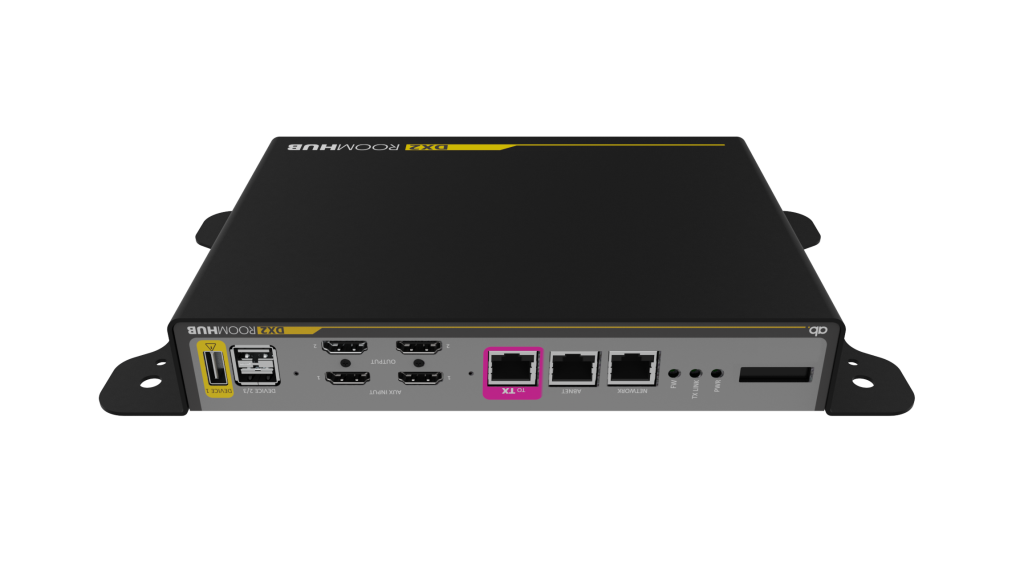

The DX2 Room Hub should located near the display or where the Video Bar or VC equipment is located.
The two boxes are linked with a single Cat6a/Cat7 cable, which can be up to 35m. Simple to install, with minimal cabling.
Optional Accessories
TX2 USB-C Charging PSU (100W).

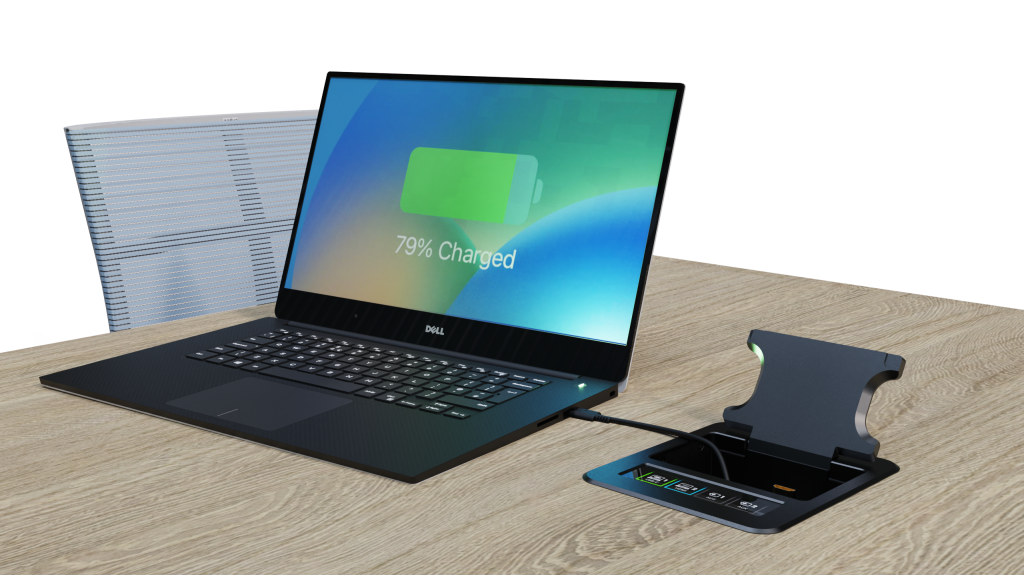

Connect the PSU to the TX2 and provide your connected USB-C device with charging power up to 100W.
Charging power will be supplied over a USB-C Cable or Retractor.
Tablebox & Retractors.

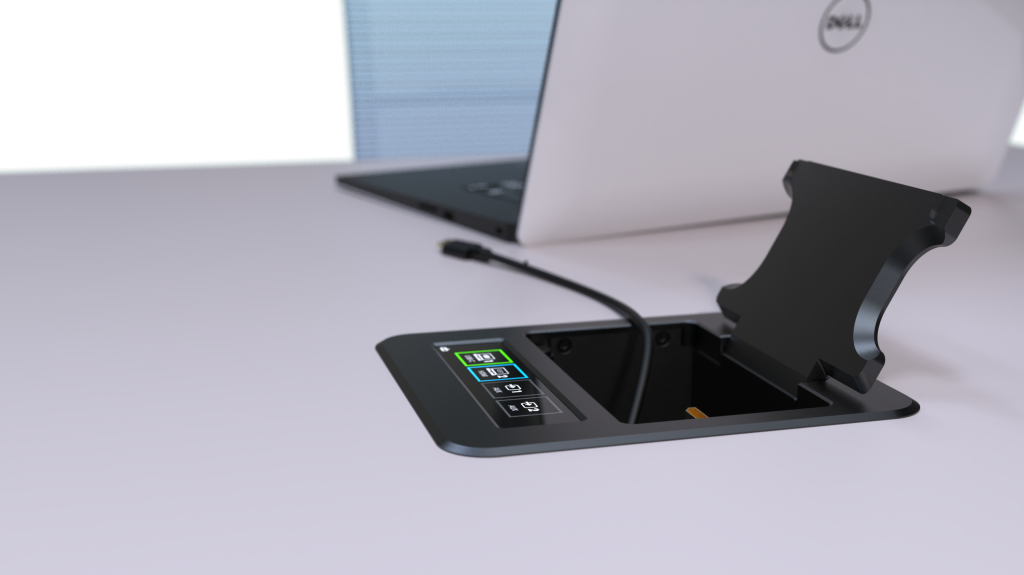

Ashton Bentley Tablebox that can be supplied with 2 Retractors (HDMI & USB-C) or just house input cables.
Manual input selection via optional integrated Touch Panel with colour changing buttons that provide status feedback.
Simple to install and use. Conceals cables when not in use keeping table surface clear.
USB-C and HDMI Cables..
Ashton Bentley cables delivers high-speed, high-performance digital video and audio with impeccable impedance stability, high signal integrity, and noise immunity.
