BX

USB-C Breakout Hub

Introduction.

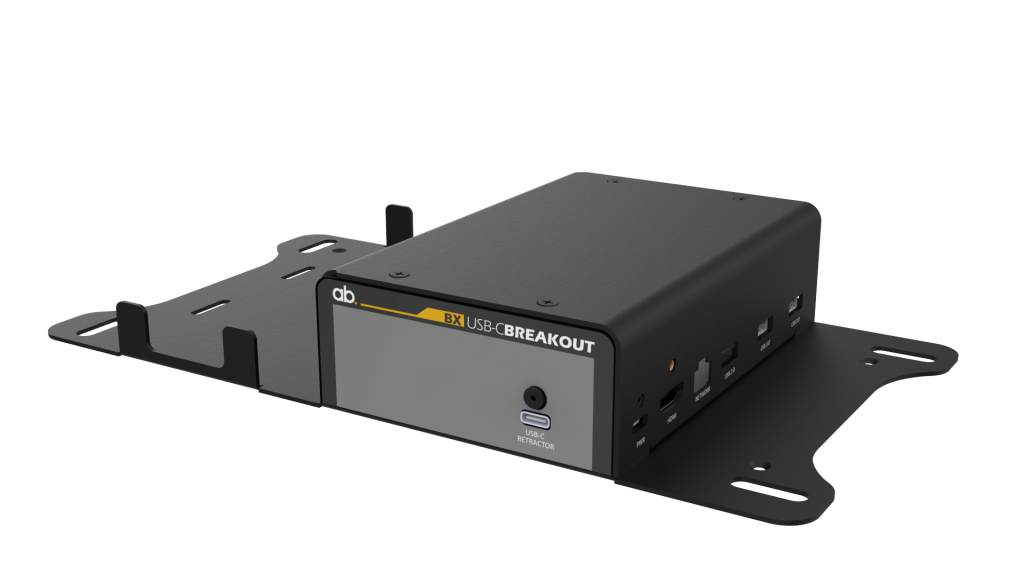

The Ashton Bentley BX is a professional alternative to proprietary USB-C docks, that can be neatly mounted under a desk or table.

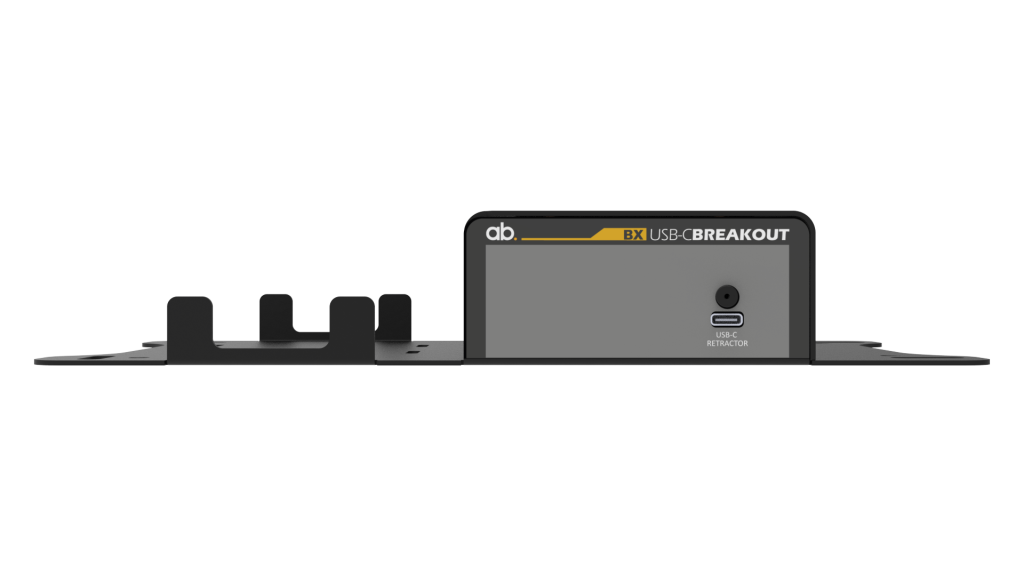

Unlike other docks that have very short USB-C cables to connect to the laptop, the BX has the option of being located up to 2.5m from the laptop when using the optional Ashton Bentley 2.5m Locking USB-C Cable. Not only extending the distance between the BX and the laptop, the cable also ‘locks’ into the BX preventing unwanted disconnection.

View the BX Overview brochure

The unit is powered from either the connected laptop or optional USB-C Charging PSU.

With the BX Charging PSU, the BX will supply charging power (100W) for the connected USB-C laptop/device. The BX back plate has a fixing position to neatly mount this PSU.

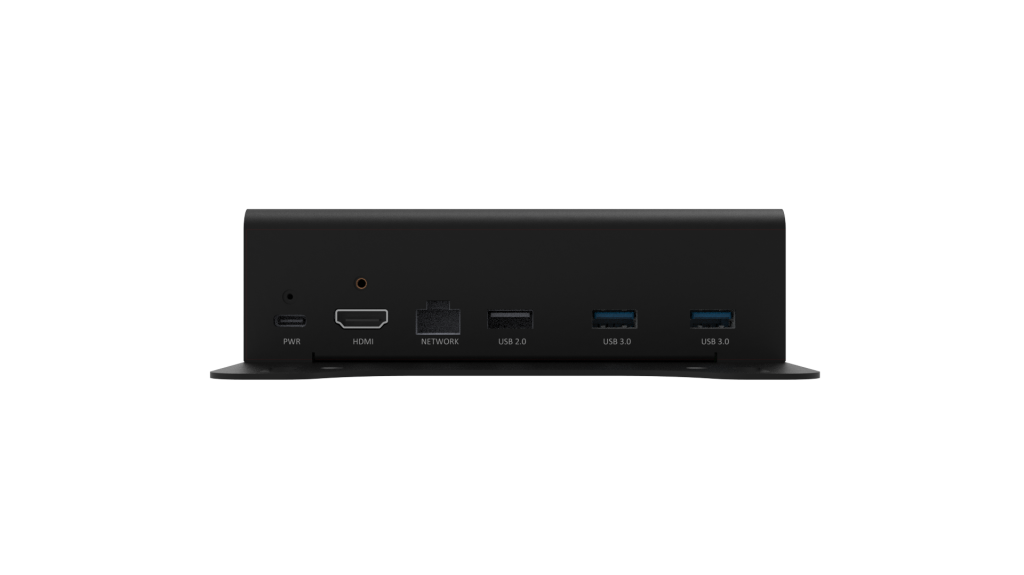

The BX Breakout Hub provides separate outputs for:

HDMI
Network
USB ports (x3)

System Basics.

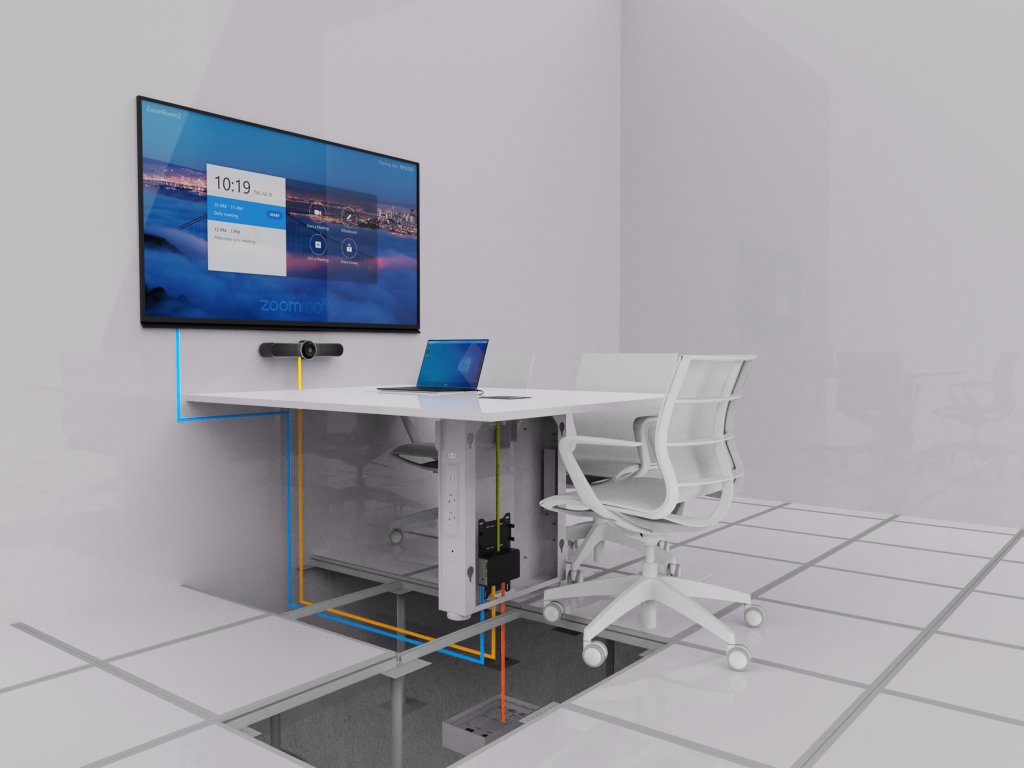

The BX USB-C Breakout Hub is installed close to the USB-C device, which could be under a table/desk or in a lectern.

Video, audio and USB connectivity to peripheral devices. Also connects to the building network.

Charge your laptop via the USB-C connection by using the optional PSU.

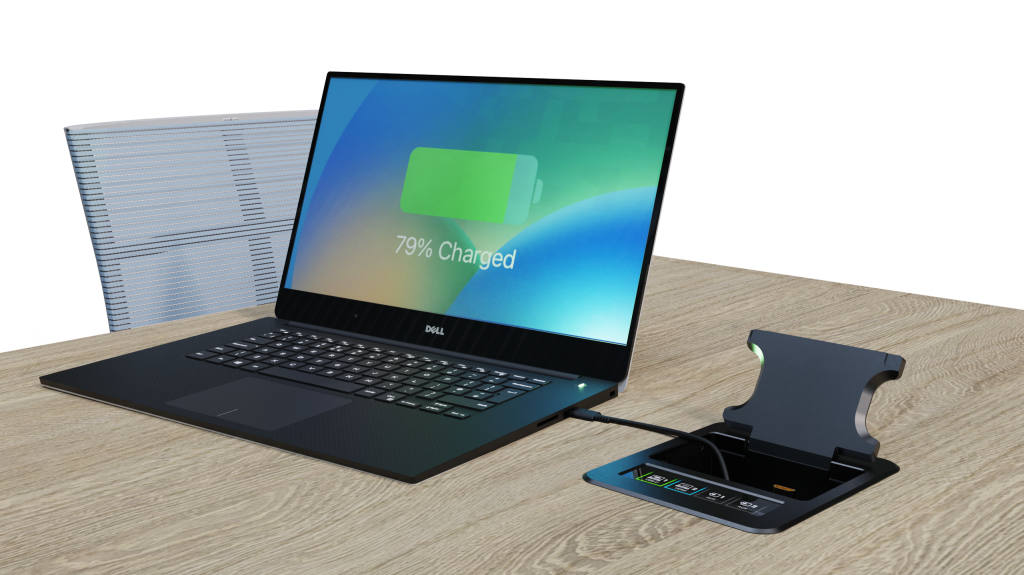

USB-C Charging.

With the optional BX Charging PSU, the BX will supply charging power for the connected USB-C laptop/device. If using either the Ashton Bentley 2.5m Locking USB-C cable or Ashton Bentley USB-C Retractor, this will provide up to 100w. If using other cables check the specification for charging power permitted.

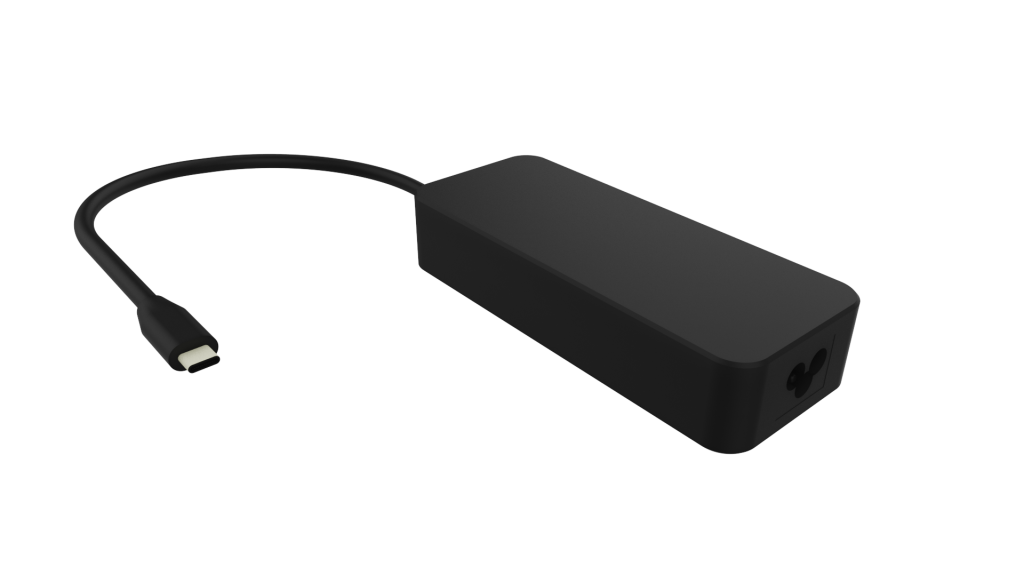

VX PSU.
